Spanners & Wrenches




ELLIPTICAL PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3113 A standard.
  • • Hardened & Tempered.
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt/Mirror/Satin & Black Chrome Finish
  • • Available individually or in sets.
  • • Made from chrome vanadium steel (31 Crv3).
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6 1/4 103 0.018
7   111 0.022
8 5/16 120 0.026
9   131 0.030
10 3/8 142 0.042
11 7/16 151 0.052
12   161 0.060
13 1/2 170 0.072
14 9/16 181 0.086
15   191 0.092
16 5/8 198 0.109
17 11/16 208 0.132
18   219 0.152
19 3/4 231 0.160
20   241 0.182
21 13/16 249 0.192
22 7/8 260 0.210
23 15/16 267 0.250
24 1 280 0.260
25 288 0.300
26 1.1/16 301 0.320
27 1.1/18 308 0.390
28   320 0.435
30   320 0.460
32 1.1/4 340 0.460
33   380 0.560
34   380 0.689
36 1.3/8 410 0.882
38 1.1/2 430 0.848
41 1.5/8 460 1.175
42 1.11/16 460 1.142
44 1.3/4 500 1.810
46 1.13/16 500 1.760
48 1.7/8 540 2.110
50 2 540 2.074
    MM SETS
M/6 Set of 6 Pcs
(8,10,12,13,
14,17MM)		 0.418 M/14 Set of 14 Pcs
(8,9,10,11,13,14,15,
16,17,19,21,22,24MM)		 1.523
M/8 Set of 8 Pcs
(8,9,10,11,13,
14,17,19MM)		 0.600 M/25 Set of 25 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,30&32MM)		 4.612
M/12 Set of 12 Pcs
(6,7,8,9,10,11,12,
13,14,17,19,22MM)		 0.910 M/26 Set of 26 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30&32MM)		 5.047
      SAE SETS
S/5 Set of 5 Pcs
(3/8,7/16,1/2,
9/16,5/8) INCH		 0.361 S/12 Set of 12 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8&1") INCH		 1.359
S/11 Set of 11 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8") INCH		 1.099 S/14 Set of 14 Pcs
(1/4,5/16,3/8,7/16,1/2,
9/16,5/8,11/16,3/4,13/16,
7/8,15/16,1"&1_1/4") INCH		 2.069

ANTI-SKID PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3113 A standard.
  • • Hardened & Tempered.
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt/Mirror/Satin & Black Chrome Finish
  • • Available individually or in sets.
  • • Made from chrome vanadium steel (31 Crv3).
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6 1/4 103 0.018
7   111 0.022
8 5/16 120 0.026
9   131 0.030
10 3/8 142 0.042
11 7/16 151 0.052
12   161 0.060
13 1/2 170 0.072
14 9/16 181 0.086
15   191 0.092
16 5/8 198 0.109
17 11/16 208 0.132
18   219 0.152
19 3/4 231 0.160
20   241 0.182
21 13/16 249 0.192
22 7/8 260 0.210
23 15/16 267 0.250
24 1 280 0.260
25   288 0.300
26 1.1/16 301 0.320
27 1.1/8 308 0.390
28   320 0.435
30   320 0.460
32 1.1/4 340 0.460
33 1.5/16 380 0.560
34   380 0.689
36 1.3/8 410 0.882
38 1.1/2 430 0.848
41 1.5/8 460 1.175
42 1.11/16 460 1.142
44 1.3/4 500 1.810
46 1.13/16 500 1.760
48 1.7/8 540 2.110
50 2 540 2.074
    MM SETS
M/6 Set of 6 Pcs
(8,10,12,13,
14,17MM)		 0.418 M/14 Set of 14 Pcs
(8,9,10,11,13,14,15,
16,17,19,21,22,24MM)		 1.523
M/8 Set of 8 Pcs
(8,9,10,11,13,
14,17,19MM)		 0.600 M/25 Set of 25 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,30&32MM)		 4.612
M/12 Set of 12 Pcs
(6,7,8,9,10,11,12,
13,14,17,19,22MM)		 0.910 M/26 Set of 26 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30&32MM)		 5.072
      SAE SETS
S/6 Set of 5 Pcs
(3/8,7/16,1/2,
9/16,5/8) INCH		 0.361 S/12 Set of 12 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8&1") INCH		 1.359
S/11 Set of 11 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8") INCH		 1.099 S/14 Set of 14 Pcs
(1/4,5/16,3/8,7/16,1/2,
9/16,5/8,11/16,3/4,13/16,
7/8,15/16,1"&1_1/4") INCH		 2.069

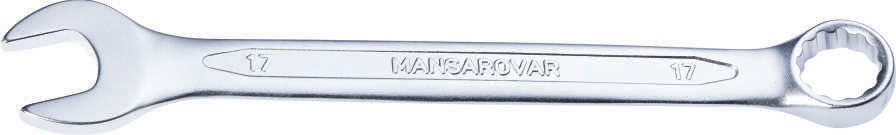

COLD PRESS PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3113 A standard.
  • • Hardened & Tempered.
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt/Mirror/Satin & Black Chrome Finish
  • • Available individually or in sets.
  • • Made from chrome vanadium steel (31 Crv3).
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6 1/4 103 0.018
7   111 0.022
8 5/16 120 0.026
9   131 0.030
10 3/8 142 0.042
11 7/16 151 0.052
12   161 0.060
13 1/2 170 0.072
14 9/16 181 0.086
15   191 0.092
16 5/8 198 0.109
17 11/16 208 0.132
18   219 0.152
19 3/4 231 0.160
20   241 0.182
21 13/16 249 0.192
22 7/8 260 0.210
23 15/16 267 0.250
24 1 280 0.260
25   288 0.300
26 1.1/16 301 0.320
27 1.1/8 308 0.390
28   320 0.435
30   320 0.460
32 1.1/4 340 0.460
33 1.5/16 380 0.560
34   380 0.689
36 1.3/8 410 0.882
38 1.1/2 430 0.848
41 1.5/8 460 1.175
42 1.11/16 460 1.142
44 1.3/4 500 1.810
46 1.13/16 500 1.760
48 1.7/2 540 2.110
50   540 2.074
    MM SETS
M/6 Set of 6 Pcs
(8,10,12,13,
14,17MM)		 0.418 M/14 Set of 14 Pcs
(8,9,10,11,13,14,15,
16,17,19,21,22,24MM)		 1.523
M/8 Set of 8 Pcs
(8,9,10,11,13,
14,17,19MM)		 0.600 M/25 Set of 25 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,30&32MM)		 4.612
M/12 Set of 12 Pcs
(6,7,8,9,10,11,12,
13,14,17,19,22MM)		 0.910 M/26 Set of 26 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30&32MM)		 5.072
      SAE SETS
S/5 Set of 5 Pcs
(3/8,7/16,1/2,
9/16,5/8) INCH		 0.361 S/12 Set of 12 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8&1") INCH		 1.359
S/11 Set of 11 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8") INCH		 1.099 S/14 Set of 14 Pcs
(1/4,5/16,3/8,7/16,1/2,
9/16,5/8,11/16,3/4,13/16,
7/8,15/16,1"&1_1/4") INCH		 2.069

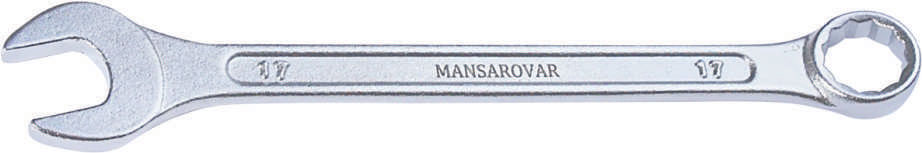

RECESSED PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirm to DIN 3113 A standard.
  • • Hardened & Tempered.
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt/Mirror/Satin & Black Chrome Finish
  • • Available individually or in sets.
  • • Made from chrome vanadium steel (31 Crv3).
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6 1/4 100 0.018
7   110 0.020
8 5/16 120 0.024
9   131 0.028
10 3/8 140 0.038
11 7/16 149 0.048
12   159 0.055
13 1/2 170 0.060
14 9/16 179 0.080
15   189 0.090
16 5/8 198 0.105
17 11/16 209 0.115
18   209 0.130
19 3/4 231 0.145
20   231 0.170
21 13/16 245 0.175
22 7/8 259 0.185
23 15/16 262 0.230
24 1 275 0.260
25   275 0.300
26 1.1/16 285 0.325
27 1.1/8 291 0.350
28   291 0.400
29   320 0.455
30   330 0.480
32 1.1/4 350 0.575
    MM SETS
M/6 Set of 6 Pcs
(8,10,12,13,
14,17MM)		 0.372 M/14 Set of 14 Pcs
(8,9,10,11,13,14,15,
16,17,19,21,22,24MM)		 1.408
M/8 Set of 8 Pcs
(8,9,10,11,13,
14,17,19MM)		 0.538 M/25 Set of 25 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,30&32MM)		 4.406
M/12 Set of 12 Pcs
(6,7,8,9,10,11,12,
13,14,17,19,22MM)		 0.816 M/26 Set of 26 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30&32MM)		 4.861
      SAE SETS
S/5 Set of 5 Pcs
(3/8,7/16,1/2,
9/16,5/8) INCH		 0.324 S/12 Set of 12 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8&1") INCH		 1.196
S/11 Set of 11 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8") INCH		 0.981 S/14 Set of 14 Pcs
(1/4,5/16,3/8,7/16,1/2,
9/16,5/8,11/16,3/4,13/16,
7/8,15/16,1"&1_1/4") INCH		 1.636


RAISED PANEL


  • • Hardened & Tempered
  • • Drop Forged
  • • Raised Panel
  • • Matt Finish/Head Polish
  • • Made of Carbon Steel
  • • HSN 82041110
  • • Available Individually or in Sets
SIZE LENGTH WEIGHT (KG)
MM SAE
6 1/4 95 0.016
7   97 0.020
8 5/16 108 0.028
9   114 0.030
10 3/8 128 0.040
11 7/16 132 0.043
12   137 0.054
13 1/2 145 0.065
14 9/16 164 0.080
15   175 0.090
16 5/8 185 0.100
17 11/16 205 0.135
18   205 0.140
19 3/4 232 0.160
20   232 0.165
21 13/16 258 0.205
22 7/8 289 0.215
23 15/16 289 0.220
24 1 313 0.285
25   324 0.300
26 1.1/16 340 0.300
27 1.1/18 361 0.380
28   369 0.385
30   381 0.510
32 1.1/4 391 0.605
    MM SETS
M/6 Set of 6 Pcs
(8,10,12,13,
14,17MM)		 0.372 M/14 Set of 14 Pcs
(8,9,10,11,13,14,15,
16,17,19,21,22,24MM)		 1.353
M/8 Set of 8 Pcs
(8,9,10,11,13,
14,17,19MM)		 0.533 M/25 Set of 25 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,30&32MM)		 3.821
M/12 Set of 12 Pcs
(6,7,8,9,10,11,12,
13,14,17,19,22MM)		 0.811 M/26 Set of 26 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30&32MM)		 4.131
      SAE SETS
S/5 Set of 5 Pcs
(3/8,7/16,1/2,
9/16,5/8) INCH		 0.328 S/12 Set of 12 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8&1") INCH		 1.377
S/11 Set of 11 Pcs
(1/4,5/16,3/8,7/16,
1/2,9/16,5/8,11/16,
3/4,13/16,7/8") INCH		 1.087 S/14 Set of 14 Pcs
(1/4,5/16,3/8,7/16,1/2,
9/16,5/8,11/16,3/4,13/16,
7/8,15/16,1"&1_1/4") INCH		 2.267
