Spanners & Wrenches




ELLIPTICAL PANEL DEEP OFFSET


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Hardened & Tempered
  • • Available in your brand.
  • • Confirms To DIN 838 Standard
  • • Lifetime limited manufacturing warranty.
  • • Made from Black Chrome Vandium Steel 31Crv3
  • • Matt/Mirror/Satin Black Finish
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 180 0.050
8x9 5/16X3/8 195 0.070
10x11 3/8X7/16 195 0.090
12x13 7/16X1/2 215 0.125
14x15 1/2X9/16 226 0.150
16x17 5/8X11/16 255 0.170
18x19   275 0.210
20x22 13/16X7/8 305 0.305
21x23 13/16X15/16 310 0.325
24x27 15/16X1.1/16 320 0.395
25x28 1X1.1/8 330 0.425
30x32   366 0.560
ODD SIZES
8x10 1/4X4/16 195 0.070
10x12   215 0.125
12x14   215 0.125
13x17   226 0.150
14x17   255 0.170
17x19   275 0.210
19x22   305 0.305
22x24   310 0.325
24x26 15/16x1.1/16 320 0.395
27x32 1.1/16X1.1/4 366 0.560
MM SETS
M/6 Set of 6 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.655
M/8 Set of 8 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 1.170
M/12 Set of 12 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 2.875

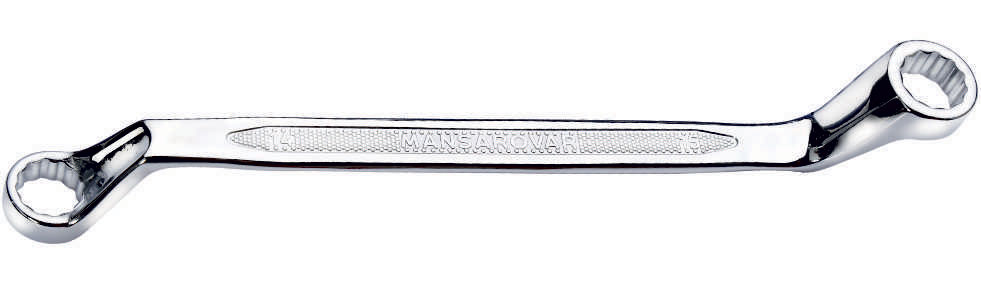

ANTI SKID PANEL DEEP OFFSET


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Anti Slip Panel
  • • Confirms To DIN 838 Standard
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Hardened & Tempered
  • • Made from Chrome Vanadium Steel 31Crv3
  • • Matt/Mirror/Satin Finish
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 180 0.050
8x9 5/16X3/8 195 0.070
10x11 3/8X7/16 195 0.090
12x13 7/16X1/2 215 0.125
14x15 1/2X9/16 226 0.150
16x17 5/8X11/16 255 0.170
18x19   275 0.210
20x22 13/16X7/8 305 0.305
21x23 13/16X15/16 310 0.325
24x27 15/16X1.1/16 320 0.395
25x28 1X1.1/8 330 0.425
30x32   366 0.560
ODD SIZES
8x10 1/4X4/16 195 0.070
10x12   215 0.125
12x14   215 0.125
13x17   226 0.150
14x17   255 0.170
17x19   275 0.210
19x22   305 0.305
22x24 15/16x1.1/16 310 0.325
24x26 1.1x16x1.1/4 320 0.395
27x32   366 0.560
  MM SETS
M/6 Set of 6 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.655
M/8 Set of 8 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 1.170
M/12 Set of 12 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 2.875

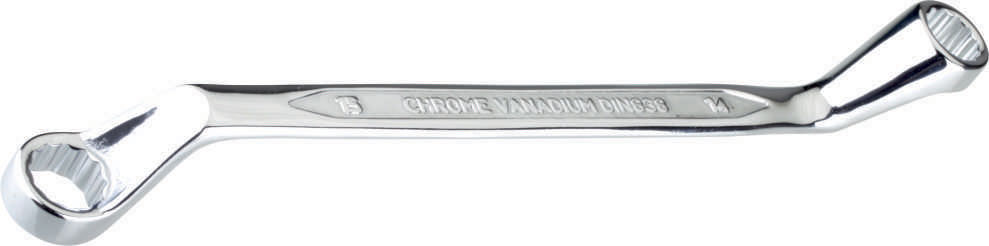

COLD PRESS PANEL DEEP OFFSET


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Hardened & Tempered
  • • Available in your brand.
  • • Confirms To DIN 838
  • • Lifetime limited manufacturing warranty.
  • • Made from Chrome Vanadium Steel
  • • Matt & Mirror Finish
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 180 0.050
8x9 5/16X3/8 195 0.070
10x11 3/8X7/16 195 0.090
12x13 7/16X1/2 215 0.125
14x15 1/2X9/16 226 0.150
16x17 5/8X11/16 255 0.170
18x19   275 0.210
20x22 13/16X7/8 305 0.305
21x23 13/16X15/16 310 0.325
24x27 15/16X1.1/16 320 0.395
25x28 1X1.1/8 330 0.425
30x32   366 0.560
ODD SIZES
8x10 1/4X4/16 195 0.070
10x12   215 0.125
12x14   215 0.125
13x17   226 0.150
14x17   255 0.170
17x19   275 0.210
19x22   305 0.305
22x24   310 0.325
24x26 15/16x1.1/16 320 0.395
27x32 1.1x16x1.1/4 366 0.560
  MM SETS
M/6 Set of 6 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.655
M/8 Set of 8 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 1.170
M/12 Set of 12 pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 2.875

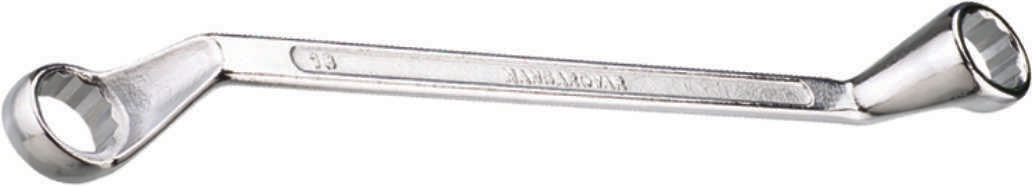

RECESSED PANEL DEEP OFFSET


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Available in your brand.
  • • Confirms To DIN 838 Standard
  • • Lifetime limited manufacturing warranty.
  • • Hardened & Tempered
  • • Carbon Steel/ CRV Steel (31Crv3)
  • • Matt Finish
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 180 0.050
8x9 5/16X3/8 195 0.070
10x11 3/8X7/16 195 0.090
12x13 7/16X1/2 215 0.125
14x15 1/2X9/16 226 0.150
16x17 5/8X11/16 255 0.170
18x19   275 0.210
20x22 13/16X7/8 305 0.305
21x23 13/16X15/16 310 0.325
24x27 15/16X1.1/16 320 0.395
25x28 1X1.1/8 330 0.425
30x32   366 0.560
ODD SIZES
8x10 1/4X4/16 195 0.070
10x12   215 0.125
12x14   215 0.125
13x17   226 0.150
14x17   255 0.170
17x19   275 0.210
19x22   305 0.305
22x24   310 0.325
24x26 15/16x1.1/16 320 0.395
27x32 1.1x16x1.1/4 366 0.560
MM SETS
M/6 Set of 6 pcs :
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.655
M/8 Set of 8 pcs :
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 1.17
M/12 Set of 12 pcs :
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 2.875

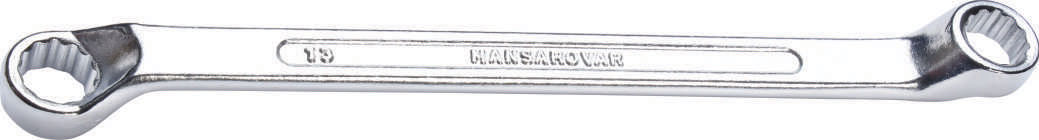

RECESSED PANEL SHALLOW OFFSET


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Available in your brand.
  • • Confirms To DIN 3113B
  • • Lifetime limited manufacturing warranty.
  • • Hardened & Tempered
  • • Made from chrome vanadium steel (31Crv3)
  • • Matt & Finish
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 180 0.050
8x9 5/16X3/8 195 0.070
10x11 3/8X7/16 195 0.090
12x13 7/16X1/2 215 0.125
14x15 1/2X9/16 226 0.150
16x17 5/8X11/16 255 0.170
18x19   275 0.210
20x22 13/16X7/8 305 0.305
21x23 13/16X15/16 310 0.325
24x27 15/16X1.1/16 320 0.395
25x28 1X1.1/8 330 0.425
30x32   366 0.560
ODD SIZES
8x10 1/4X4/16 195 0.070
10x12   215 0.125
12x14   215 0.125
13x17   226 0.150
14x17   255 0.170
17x19   275 0.210
19x22   305 0.305
22x24   310 0.325
24x26 15/16X1.1/16 320 0.395
27x32 1.1/16X1.1/4 366 0.560
  MM SETS
M/6 Set of 6 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.655
M/8 Set of 8 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 1.17
M/12 Set of 12 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 2.875
