Spanners & Wrenches

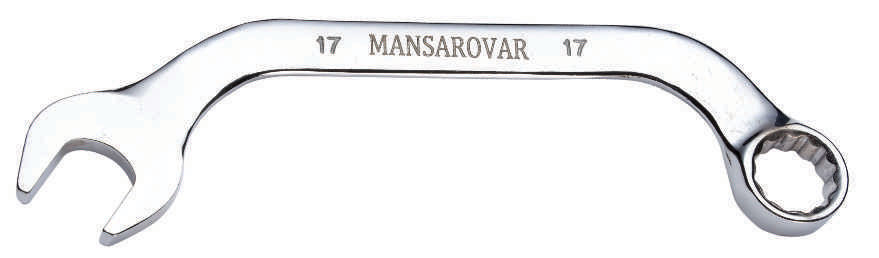

COMBINATION SPANNER HALF MOON PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE WEIGHT (KG)
MM SAE
10 3/8' 0.020
11 7/16 0.025
12   0.035
13 1/2 0.050
14 9/16 0.065
15   0.095
16 5/8 0.150
17 11/16 0.150
19 3/4 0.175
22 7/8 0.175

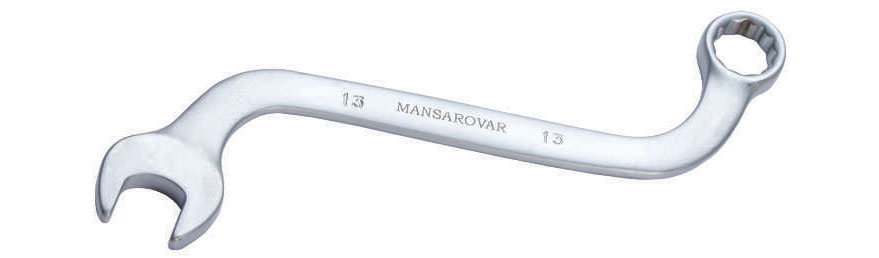

COMBINATION SPANNER 'S' SHAPED PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE WEIGHT (KG)
MM SAE
10 3/8 0.020
11 7/16 0.025
12   0.035
13 1/2 0.050
14 9/16 0.065
15   0.095
16 5/81 0.150
17 11/16 0.150
19 3/4 0.175


COMBINATION STUBBY SPANNER


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Hardened & Tempered
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Matt/Mirror/Black Finish
  • • HSN 82041110
  • • Available individually or in sets.
SIZE LENGTH WEIGHT (KG)
MM SAE
10 3/8 95 0.035
11 7/16 101 0.038
12   105 0.045
13 1/2 110 0.050
14 9/16 116 0.061
15   125 0.080
16 5/8 125 0.081
17 11/16 130 0.095
18   130 0.110
19 3/4 140 0.115
20   140 0.125
21 13/1 140 0.150
22 67/8 150 0.160
23 15/16 152 0.190
25 1 152 0.190

FLARE NUT ELLIPTICAL PANEL/RAISED PANEL/ANTI-SKID


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3118 Standard.
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Mirror/Satin/Black/Matt Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
  • • Available individually or in sets.
SIZE LENGTH WEIGHT (KG)
MM WW
8x10 5/16x3/8 143 45
9x11   146 55
10x11 3/8x7/16 146 55
10x12   146 60
11x13 7/16x1/2 165 80
12x13   176 95
12x14   176 95
13x14 1/2x9/16 186 125
14x15   186 125
14x17   195 150
15x17   195 150
16x17   195 150
16x18 5/8x3/4 195 150
17x19   204 190
22x24   250 335

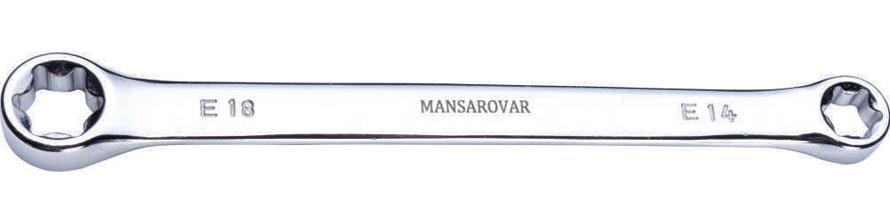

FLAT RING TORX HEAD SPANNER


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE MM LENGTH WEIGHT (KG)
E6xE7 112 0.014
E6xE8 112 0.014
E7xE11 140 0.039
E8xE10 140 0.039
E10xE12 140 0.039
E11xE12 140 0.039
E14xE16 180 0.039
E14xE18 180 0.039
E16xE22 224 0.088
E18xE22 224 0.088
E20xE24 224 0.168
E22xE24 224 0.168

RING SPANNER ELLIPTICAL HALF MOON PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE MM WEIGHT (KG)
10x11 0.045
10x12 0.045
12x13 0.075
14x15 0.100
13x17 0.150
14x17 0.150
16x17 0.150
17x19 0.200
19x22 0.200


RING SPANNER ELLIPTICAL 'S' SHAPED PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE WEIGHT (KG)
MM SAE
10x11 3/8x7/16 0.045
12x13 7/16x1/2 0.070
14x15 1/2x9/16 0.110
16x17 5/8x11/16 0.150
18x19   0.190

STRAIGHT DOUBLE RING SPANNER


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE MM LENGTH WEIGHT (KG)
6x7 99 0.014
8x9 114 0.024
10x11 131 0.034
12x13 149 0.049
14x15 161 0.064
16x17 169 0.084
18x19 209 0.136
20x22 209 0.134
21x23 233 0.171
24x27 260 0.249
25x28 289 0.273
30x32 320 0.399
