Manufacturer & Exporters of Hand Tools, Construction Tools, Lubrication Tools, Plumbing Tools, Garden Tools.

Download - PDF

Spanners & Wrenches




ELLIPTICAL PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3110 Standard
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt Finish/Mirror Finish/Satin Finish & Black Finish
  • • Hardened & Tempered
  • • Available individually or in sets.
  • • HSN 82041110
  • • Made from chrome vanadium steel (31Crv3)
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 123 0.024
8x9 5/16X3/8 136 0.032
10x11 3/8X7/16 150 0.055
12x13 7/16X1/2 165 0.076
14x15 1/2X9/16 188 0.112
16x17 5/8X11/16 202 0.130
18x19   214 0.165
20x22 13/16X7/8 233 0.210
21x23 13/16X15/16 246 0.240
24x27 15/16X1.1/16 265 0.315
25x28 1X1.1/8 279 0.360
30x32   299 0.485
32X36   315 0.600
36X41   358 0.800
41X46   410 1.200
46X50   460 1.850
ODD SIZES
8x10 1/4X4/16 142 0.032
9x11   157 0.055
10x12   157 0.055
10x13   170 0.076
11x13   170 0.076
12x14   170 0.076
13x14   186 0.112
13x17   202 0.130
14x17   202 0.130
15x16   186 0.165
16x18   202 0.165
17x18   218 0.165
17x19   220 0.165
19x22   232 0.210
22x24 15/16X1 246 0.240
24x26   265 0.360
27x30   295 0.485
27x32 1.1/16X1.1/4 298 0.485
  MM SETS
M/4 Set 4 pcs
(32x36, 36x41, 41x46, 46x50) MM		 4.450
M/6 Set of 6 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.429
M/8 Set of 8 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 0.804
M/12 Set of 12 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32)		 2.204

ANTI SKID PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms To DIN 3110 Standard
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt Finish/Mirror Finish
  • • Anti Slip Panel
  • • Hardened & Tempered
  • • Available individually or in sets.
  • • HSN 82041110
  • • Made from chrome vanadium steel (31Crv3)
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 123 0.024
8x9 5/16X3/8 136 0.032
10x11 3/8X7/16 150 0.055
12x13 7/16X1/2 165 0.076
14x15 1/2X9/16 188 0.112
16x17 5/8X11/16 202 0.130
18x19   214 0.165
20x22 13/16X7/8 233 0.210
21x23 13/16X15/16 246 0.240
24x27 15/16X1.1/16 265 0.315
25x28 1X1.1/8 279 0.360
30x32   299 0.485
32x36   315 0.600
36x41   358 0.800
41x46   410 1.200
46x50   460 1.850
ODD SIZES
8x10 1/4X4/16 142 0.032
9x11   157 0.055
10x12   157 0.055
10x13   170 0.062
11x13   170 0.076
12x14   170 0.076
13x14   186 0.112
13x17   202 0.130
14x17   202 0.130
15x16   186 0.165
16x18   202 0.165
17x18   218 0.165
17x19   220 0.165
19x22   232 0.210
22x24 15/16X1 246 0.240
24x26   265 0.360
27x30   295 0.485
27x32 1.1/16X1.1/4 298 0.485
  MM SETS
M/4 Set of 4 pcs
(32x36, 36x41, 41x46, 46x50) MM		 4.450
M/6 Set of 6 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.429
M/8 Set of 8 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 0.804
M/12 Set of 12 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 2.204


COLD PRESS PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms To DIN 3110 Standard
  • • Hardened & Tempered
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt Finish/Mirror Finish
  • • Available individually or in sets.
  • • HSN 82041110
  • • Made from chrome vanadium steel (31Crv3)
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 123 0.024
8x9 5/16X3/8 136 0.032
10x11 3/8X7/16 150 0.055
12x13 7/16X1/2 165 0.076
14x15 1/2X9/16 188 0.112
16x17 5/8X11/16 202 0.130
18x19   214 0.165
20x22 13/16X7/8 233 0.210
21x23 13/16X15/16 246 0.240
24x27 15/16X1.1/16 265 0.315
25x28 1X1.1/8 279 0.360
30x32   299 0.485
32X36   315 0.600
36X41   358 0.800
41X46   410 1.200
46X50   460 1.850
ODD SIZES
8x10 1/4X4/16 142 0.032
9x11   157 0.055
10x12   157 0.055
10x13   170 0.076
11x13   170 0.076
12x14   170 0.076
13x14   186 0.112
13x17   202 0.130
14x17   202 0.130
15x16   186 0.165
16x18   202 0.165
17x18   218 0.165
17x19   220 0.165
19x22   232 0.210
22x24 15/16X1 246 0.240
24x26   265 0.360
27x30   295 0.485
27x32 1.1/16X1.1/4 298 0.485
  MM SETS
M/4 Set of 4 pcs
(32x36, 36x41, 41x46, 46x50) MM		 4.450
M/6 Set of 6 Pcs
(6x7, 8x9, 10x11,12x13, 14x15, 16x17) MM		 0.429
M/8 Set of 8 Pcs
(6x7, 8x9, 10x11, 12x13,14x15, 16x17, 18x19, 20x22) MM		 0.804
M/12 Set of 12 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27,25x28, 30x32) MM		 2.204

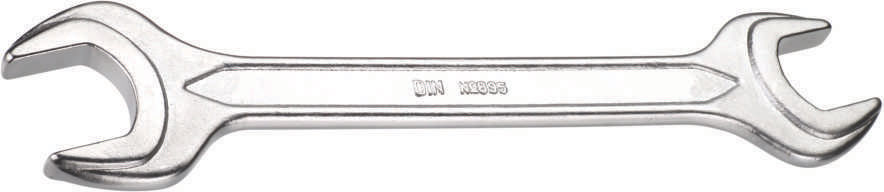

RECESSED PANEL LONG PATTERN


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3110 Standard
  • • Matt Finish & Head Polish
  • • HSN 82041110
  • • Available in your brand
  • • Made from chrome vanadium steel (31 Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available Individually or in Sets
  • • Hardened & Tempered
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 126 0.023
8x9 5/16X3/8 142 0.032
10x11 3/8X7/16 157 0.050
12x13 7/16X1/2 170 0.062
14x15 1/2X9/16 187 0.080
16x17 5/8X11/16 202 0.110
18x19   220 0.150
20x22 13/16X7/8 232 0.200
21x23 13/16X15/16 246 0.230
24x27 15/16X1.1/16 265 0.275
25x28 1X1.1/8 275 0.345
30x32   298 0.450
ODD SIZES
8x10 1/4X4/16 142 0.032
9x11   157 0.050
10x12   157 0.050
10x13   170 0.062
11x13   170 0.062
12x14   170 0.062
13x14   186 0.080
13x17   202 0.110
14x17   202 0.110
15x16   186 0.150
16x18   202 0.150
17x18   218 0.150
17x19   220 0.150
19x22   232 0.200
22x24 15/16X1 246 0.230
24x26   265 0.345
27x30   295 0.450
27x32 1.1/16X1.1/4 298 0.450
MM SETS
M/6 Set of 6 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.357
M/8 Set of 8 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 0.707
M/12 Set of 12 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 2.007


RECESSED PANEL SHORT PATTERN


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3110 Standard
  • • Hardened & Tempered
  • • Matt Finish & Head Polish
  • • HSN 82041110
  • • Lifetime limited manufacturing warranty.
  • • Made from chrome vanadium steel (31 Crv3)
  • • Available in your brand
  • • Available Individually or in Sets
SIZE LENGTH WEIGHT (KG)
MM SAE
6x7 1/4X5/16 96 0.020
8x9 5/16X3/8 102 0.025
10x11 3/8X7/16 113 0.045
12x13 7/16X1/2 130 0.060
14x15 1/2X9/16 146 0.080
16x17 5/8X11/16 160 0.110
18x19   174 0.145
20x22 13/16X7/8 193 0.165
21x23 13/16X15/16 208 0.216
24x27 15/16X1.1/16 326 0.246
25x28 1X1.1/8 242 0.316
30x32   248 0.320
ODD SIZES
8x10 1/4X4/16 102 0.032
10x12   113 0.045
10x13   130 0.045
12x14   136 0.055
13x17   160 0.080
14x17   160 0.080
17x19   174 0.110
19x22   193 0.145
22x24 15/16X1 208 0.170
24x26   226 0.210
27x32 1.1/16X1.1/4 248 0.310
MM SETS
M/6 Set of 6 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17) MM		 0.205
M/8 Set of 8 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22) MM		 0.520
M/12 Set of 12 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32) MM		 1.445
